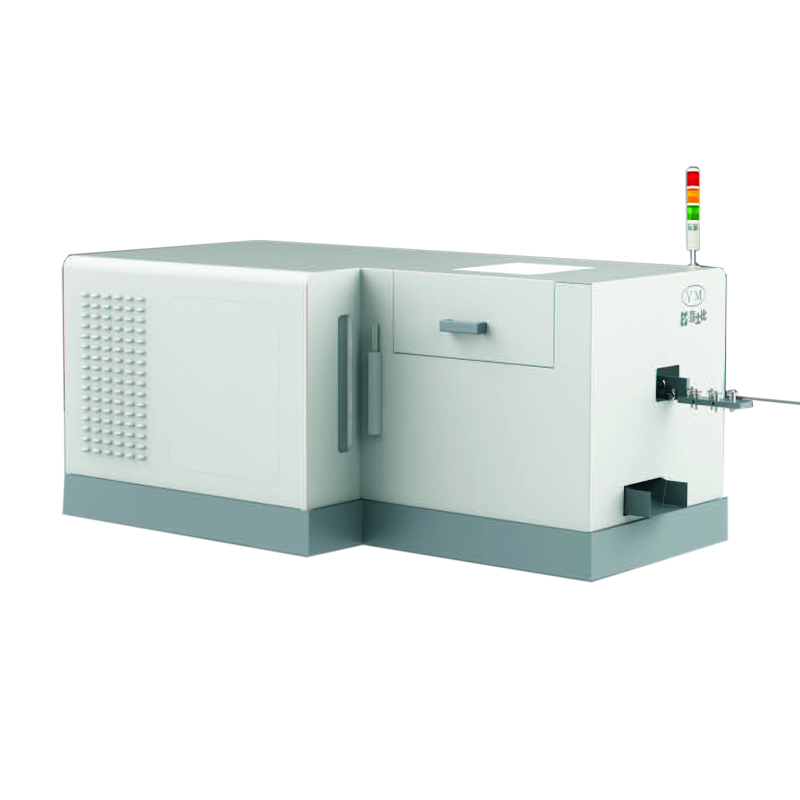

Our cutting-edge 2-mode 2-punch station high-speed bolt cold pier machine and riveting machine is designed to revolutionize the production of screws. This advanced machinery is equipped with state-of-the-art technology to ensure efficient and precise manufacturing processes.
specifications:
| Model | Unit | K-203 | K-205 | K-206 |
Forging station | NO. | 2 | 2 | 2 |
Forging force | Kgf | 12000 | 22000 | 28000 |
| Max.cut-off dia | mm | Ø4 | Ø5.5 | Ø7.5 |
| Max.cut-off length | mm | 35 | 70 | 80 |
Production speed | pcs/min | 280 | 280 | 260 |
| Master die ejection stroke | mm | 30 | 65 | 80 |
| Punch die ejection stroke | mm | 10 | 15 | 15 |
Main sliding table stroke | mm | 80 | 110 | 120 |
| Overall dims.Of mian die | mm | Ø35*30 | Ø35*60 | Ø50*90 |
| Overall dims.Of punch die | mm | Ø22*40 | Ø31*80 | Ø38*85 |
Overall dims.Of cut of die | mm | Ø18*22 | Ø18*25 | Ø28*35 |
Die pitch | mm | 50 | 55 | 55 |
Applicable bolt die | mm | 1-3 | 2-5 | 3-6 |
| Shank lenght of blank | mm | 10-30 | 10-65 | 10-80 |
| Max flange dia | mm | Ø8 | Ø10.5 | Ø17 |
Main engine motor | KW | 3.75 | 5.5 | 18.5 |
| Machine weight | Kgs | 2000 | 3200 | 6500 |
Machine dimension | mm | 1500*1200*1000 | 2600*1200*1150 | 2750*1200*1150 |
Advantages:
High-Speed Production:
Utilizes high-speed workstations for increased productivity in screw manufacturing.
Precision Cold Piercing:
Incorporates 2-mode 2-punch station technology for precise cold piercing, ensuring uniformity and high-quality end products.
Versatile Design:
Adaptable to various types of screws, offering a versatile solution to meet diverse manufacturing needs.

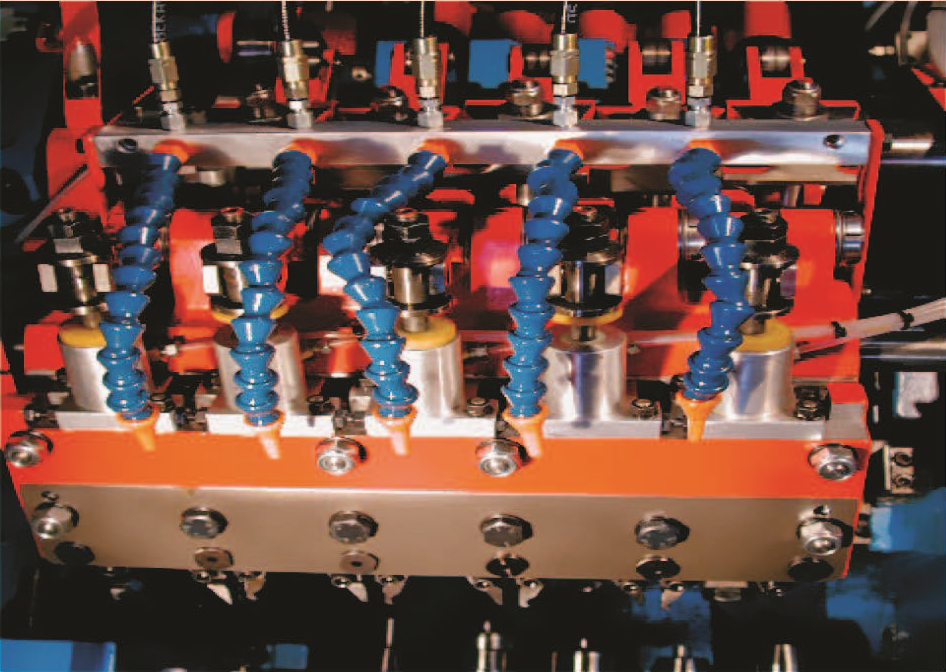

Detail Image:
Applications:
Ideal for mass production of screws in industries such as automotive, electronics, construction, and more.
Suited for manufacturing screws with varying specifications and dimensions.
Our Shipping：
AFTER-SALES SERVICE:
1.The whole equipment is guaranteed for one year, and our companysupplies accessories for a long time.
2.To answer technical problems and provide technical services at anytime, three phone calls can not solve the problems, 24 hours to thefactory service.
3.Free training technology until users can independently producequalified products.
4.For all customers who purchase our equipment, our company willprovide the follow-up technical upgrade and improvement of theequipment free of charge.
Frequently Asked Questions (FAQ):
Q: What types of screws can be produced using this machine?
A: The machine is designed to manufacture a wide range of screws, including but not limited to standard, specialty, and custom screws.
Q: How does the 2-mode 2-punch station technology enhance production?
A: This technology ensures precise cold piercing, leading to consistent product quality and increased efficiency in the manufacturing process.
Q: Is the machine user-friendly and easy to operate?
A: Yes, our machine is equipped with an intuitive control system, and our user-friendly interface makes operation straightforward. Training and support are also provided.
Q: Can the machine be customized for specific production requirements?
A: Yes, we offer customization options to tailor the machine to your specific production needs, ensuring flexibility and optimal performance.
Q: What industries can benefit from this machine?
A: Industries such as automotive, electronics, construction, and others that require efficient and high-speed screw manufacturing processes can benefit from this advanced machinery.
