Our cutting-edge 3-mode 3-punch station high-speed bolt cold pier machine and riveting machine redefine screw manufacturing. This advanced machinery integrates innovative technology to deliver efficient and precise production processes, setting a new standard in the industry.
specifications:
| Model | Unit | K-304 | KD-304 | KD-305 | KD-306 |
Forging station | NO. | 3 | 3 | 2 | 3 |
Forging force | Kgf | 22000 | 22000 | 27000 | 40000 |
| Max.cut-off dia | mm | Ø5 | Ø5 | Ø7 | Ø8 |
| Max.cut-off length | mm | 45 | 85 | 90 | 100 |
Production speed | pcs/min | 220 | 280 | 260 | 260 |
| Master die ejection stroke | mm | 40 | 70 | 85 | 90 |
| Punch die ejection stroke | mm | 20 | 20 | 25 | 25 |
Main sliding table stroke | mm | 100 | 110 | 120 | 130 |
| Overall dims.Of mian die | mm | Ø35*60 | Ø46*60 | Ø50*90 | Ø50*100 |
| Overall dims.Of punch die | mm | Ø31*75 | Ø31*70 | Ø38*80 | Ø40*100 |
Overall dims.Of cut of die | mm | Ø18*25 | Ø18*39 | Ø28*45 | Ø28*45 |
Die pitch | mm | 55 | 55 | 55 | 55 |
Applicable bolt die | mm | 2-4 | 2-4 | 2-5 | 3-6 |
| Shank lenght of blank | mm | 10-40 | 10-65 | 10-65 | 10-85 |
| Max flange dia | mm | Ø9.5 | Ø9.5 | Ø17 | Ø19 |
Main engine motor | KW | 5.5 | 5.5 | 18.5 | 22 |
| Machine weight | Kgs | 3000 | 3200 | 6500 | 8000 |
Machine dimension | mm | 2600*1500*1400 | 2600*1500*1400 | 2750*1500*1500 | 3500*2000*2000 |
Advantages:
Enhanced Productivity:
Incorporates three high-speed workstations for increased production rates and efficiency in bolt manufacturing.
Precision Cold Piercing:
Features 3-mode 3-punch station technology, ensuring unparalleled precision in cold piercing for consistent and high-quality screw production.
Versatility in Operations:
Adaptable to a wide range of screw types and specifications, providing a versatile solution to diverse manufacturing requirements.

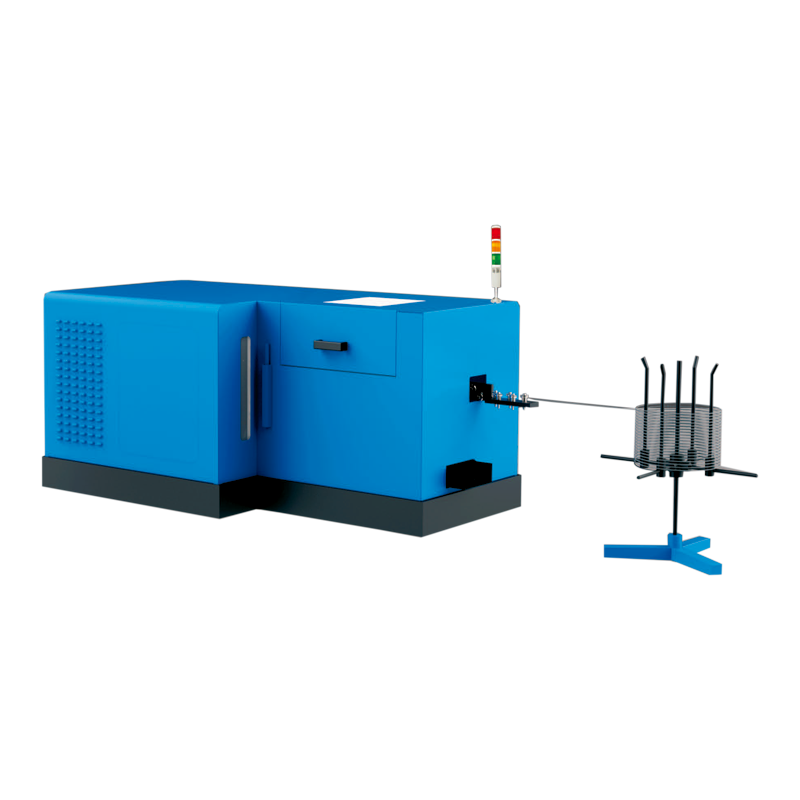

Detail Image:
Applications:
Tailored for mass production of screws in industries such as automotive, aerospace, electronics, and construction.
Suitable for manufacturing screws with varying dimensions, materials, and threading requirements.
Our Shipping：
AFTER-SALES SERVICE:
1.The whole equipment is guaranteed for one year, and our companysupplies accessories for a long time.
2.To answer technical problems and provide technical services at anytime, three phone calls can not solve the problems, 24 hours to thefactory service.
3.Free training technology until users can independently producequalified products.
4.For all customers who purchase our equipment, our company willprovide the follow-up technical upgrade and improvement of theequipment free of charge.
Frequently Asked Questions (FAQ):
Q: What types of screws can be produced using this machine?
A: The machine is designed to manufacture a broad spectrum of screws, including standard, specialty, and customized screws to meet diverse industry demands.
Q: How does the 3-mode 3-punch station technology contribute to improved production outcomes?
A: This advanced technology ensures the highest level of precision in cold piercing, resulting in consistent product quality and increased manufacturing efficiency.
Q: Is the machine user-friendly and easily operable?
A: Yes, our machine boasts an intuitive control system and a user-friendly interface, making operation straightforward. Training and technical support are provided to facilitate smooth usage.
Q: Can the machine be customized to suit specific production requirements?
A: Absolutely. We offer customization options to tailor the machine to your unique production needs, providing flexibility and optimal performance.
Q: In which industries is this machine most beneficial?
A: Industries such as automotive, aerospace, electronics, and construction that require efficient and high-speed screw manufacturing processes can significantly benefit from this advanced machinery.
