Our cutting-edge 5-mode 5-punch station high-speed bolt cold pier machine and riveting machine stand at the forefront of screw manufacturing technology. Engineered for precision and efficiency, this machinery sets a new standard for the industry, providing a comprehensive solution for high-speed bolt production.
specifications:
| Model | Unit | K-505 | K-506 | KD-506 | KD-508 | KD-510 | KD-513 | KD-516 |
Forging station | NO. | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
Forging force | Kgf | 42000 | 50000 | 50000 | 70000 | 105000 | 150000 | 260000 |
| Max.cut-off dia | mm | Ø6 | Ø8 | Ø8 | Ø10 | Ø12 | Ø16 | Ø23 |
| Max.cut-off length | mm | 80 | 95 | 100 | 140 | 165 | 220 | 240 |
Production speed | pcs/min | 240 | 200 | 220 | 200 | 200 | 120 | 95 |
| Master die ejection stroke | mm | 70 | 35 | 90 | 130 | 145 | 200 | 220 |
| Punch die ejection stroke | mm | 35 | 30 | 30 | 40 | 40 | 60 | 60 |
Main sliding table stroke | mm | 120 | 120 | 130 | 160 | 195 | 270 | 275 |
| Overall dims.Of mian die | mm | Ø50*90 | Ø50*100 | Ø50*100 | Ø60*130 | Ø75*135 | Ø80*190 | Ø108*200 |
| Overall dims.Of punch die | mm | Ø38*85 | Ø38*85 | Ø40*100 | Ø45*125 | Ø55*115 | Ø70*130 | Ø75*185 |
Overall dims.Of cut of die | mm | Ø28*35 | Ø28*35 | Ø28*45 | Ø40*60 | Ø45*60 | Ø70*69 | Ø75*100 |
Die pitch | mm | 55 | 55 | 60 | 80 | 80 | 110 | 129 |
Applicable bolt die | mm | 2-5 | 3-6 | 3-6 | 4-8 | 6-10 | 8-16 | 10-22 |
| Shank lenght of blank | mm | 10-65 | 10-85 | 10-85 | 10-115 | 10-115 | 20-180 | 20-200 |
| Max flange dia | mm | Ø17 | Ø17 | Ø19 | Ø19 | Ø25 | Ø30 | Ø36 |
Main engine motor | KW | 18.5 | 22 | 22 | 30 | 37 | 55 | 75 |
| Machine weight | Kgs | 7000 | 9000 | 9000 | 17000 | 22000 | 40000 | 58000 |
Machine dimension | mm | 3500*2000*2000 | 3500*2000*2000 | 3500*2000*2000 | 3630*2350*2090 | 4100*2500*2200 | 5100*4100*3000 | 13200*5300*2950 |
Advantages:
Unrivaled Productivity:
Integrates five high-speed workstations, maximizing production capacity and efficiency in bolt manufacturing.
Precision Cold Piercing Technology:
Incorporates advanced 5-mode 5-punch station technology for unparalleled precision in cold piercing, ensuring consistent and top-quality screw production.
Versatility and Customization:
Adaptable to a diverse range of screw types, materials, and specifications. The machine can be customized to meet specific production requirements, offering flexibility in operations.
Efficient Riveting Capability:
Equipped with advanced riveting functionality, expanding its utility beyond cold piercing to cover various aspects of screw assembly.
Smart Automation Features:
Integrates smart automation for seamless operation, reducing manual intervention and optimizing the overall manufacturing process.

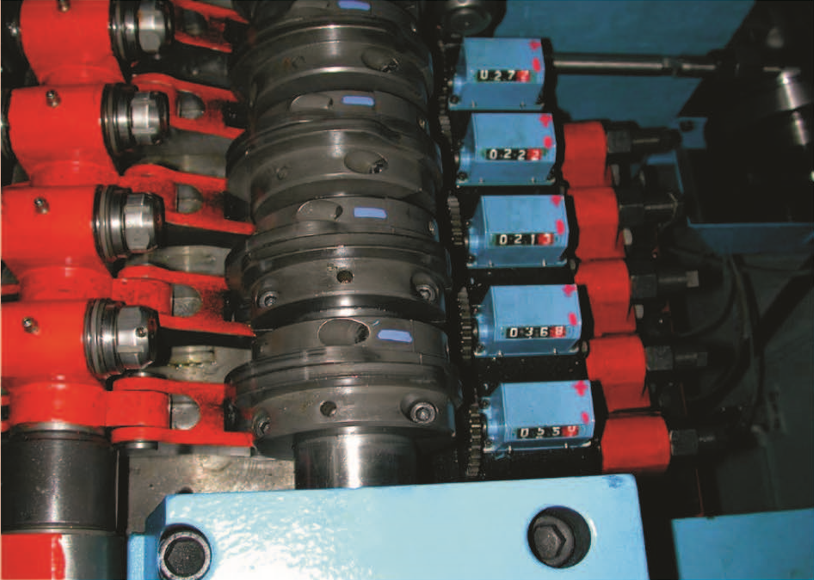

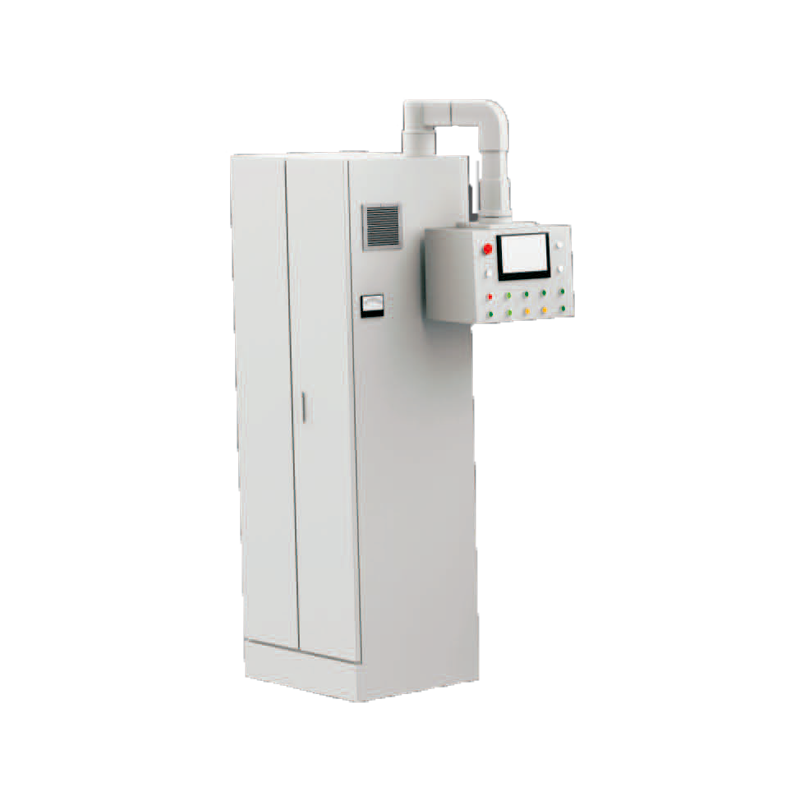

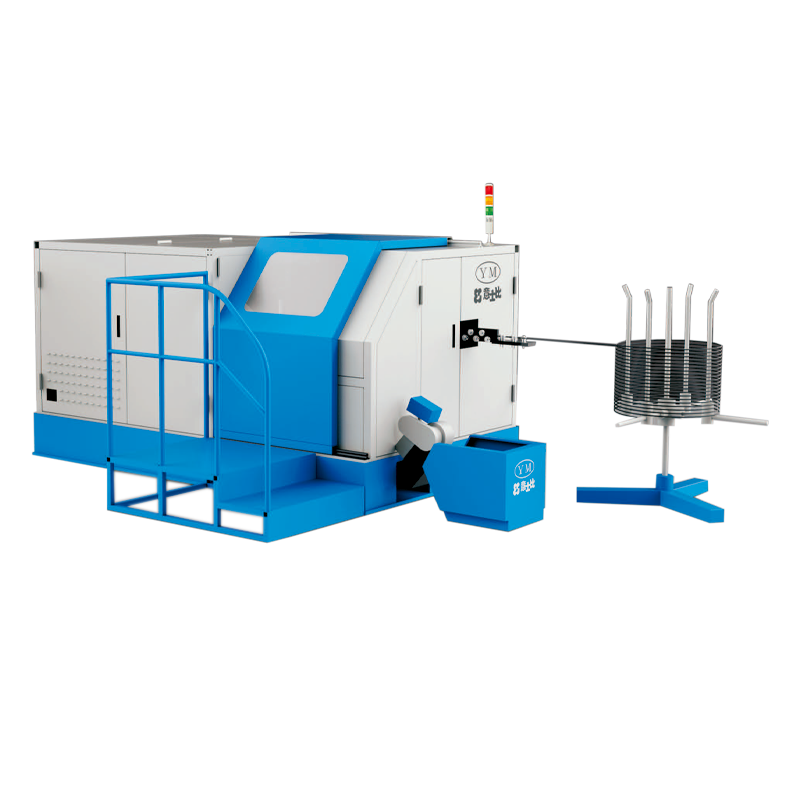

Detail Image:
Applications:
Tailored for large-scale screw production in industries such as automotive, aerospace, electronics, and construction.
Ideal for manufacturing screws with complex geometries, diverse materials, and stringent quality requirements.
