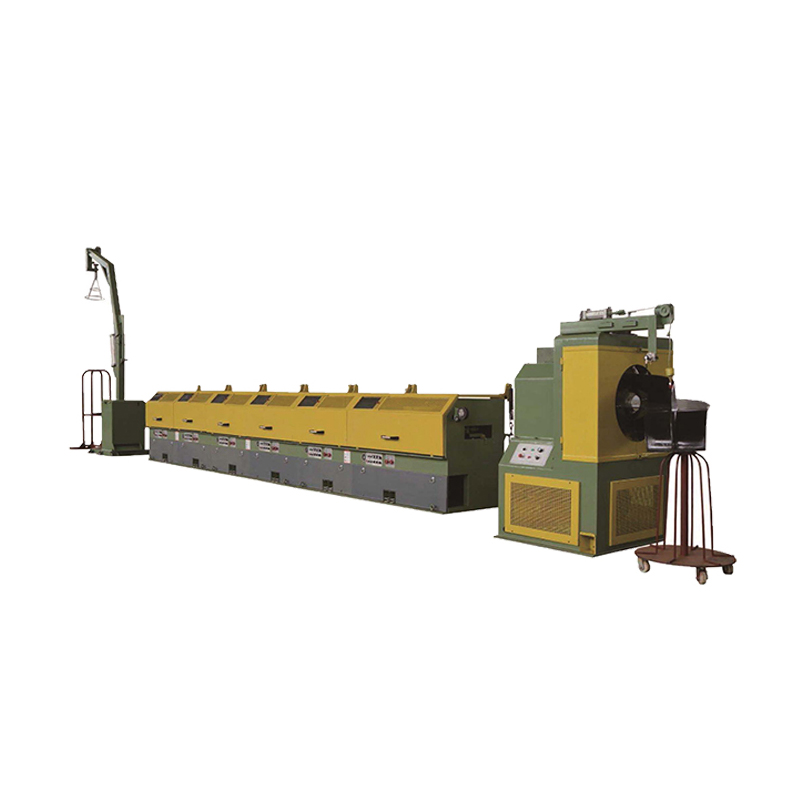

Our Straight Wire Drawing Machine is designed to transform raw wire into precisely drawn strands, ensuring consistent wire diameter reduction. With a focus on versatility, it can handle a wide range of materials including steel, aluminum, copper, and more, making it adaptable to various industrial applications.
Diameter wire drawing machine specifications:
Specificatins (Roll Diameter)/mm | 200 | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 | 900 | 120 |
| Pull strength | ≤1350 | |||||||||||
| Drawing passes | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 | ≤14 |
| Inlet diameter/mm | 2.2 | 2.8 | 3.5 | 4.2 | 5.0 | 5.5 | 6.5 | 8 | 10 | 12 | 14 | 16 |
| Outlet diameter/mm | 0.25 | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | 1.4 | 1.6 | 2.2 | 2.5 | 3.0 | 4.0 |
| Pulling speed(M/s) | 24 | 22 | 22 | 22 | 20 | 20 | 18 | 16 | 12 | 12 | 10 | 10 |
| Motor Power(KW) | 2.2-5.0 | 5.5-7.5 | 5.5-11 | 11-15 | 11-22 | 15-30 | 22-45 | 30-55 | 45-75 | 55-90 | 75-110 | 90-130 |
| Suitable fordrawing material | Steel wire (high, medium and low carbon steel wire, stainless steel wire, prestressed steel wire, bead steel wire, hose steel wire, spring steel wire, cord steel wire, etc) Welding wire (gas shielded weldingwire, submerged arc welding wire, flux cored welding wire, etc) alloy wire, etc. various metal materials | |||||||||||
Advantage:
Precision Drawing: Our cutting-edge machine employs advanced technology to achieve precision in wire diameter reduction, ensuring uniformity and accuracy in the drawn wire.
Material Versatility: The Straight Wire Drawing Machine is adept at processing a diverse range of materials, including steel, aluminum, copper, and more, catering to a wide array of industrial applications.
Optimized Performance: Engineered for efficiency, the machine maximizes output while minimizing energy consumption, making it a cost-effective solution for your production requirements.
Robust Build: Crafted with durability at its core, the machine boasts a rugged construction using top-grade materials and components, ensuring longevity and minimal maintenance.
User-Friendly Interface: Featuring an intuitive interface, operators can seamlessly set parameters, monitor the drawing process, and make real-time adjustments for optimal operational efficiency.
Safety and Compliance: Our Straight Wire Drawing Machine adheres to stringent safety standards, prioritizing the well-being of operators while maintaining compliance with industry regulations.
Our Shipping：
AFTER-SALES SERVICE:
1.The whole equipment is guaranteed for one year, and our companysupplies accessories for a long time.
2.To answer technical problems and provide technical services at anytime, three phone calls can not solve the problems, 24 hours to thefactory service.
3.Free training technology until users can independently producequalified products.
4.For all customers who purchase our equipment, our company willprovide the follow-up technical upgrade and improvement of theequipment free of charge.
